Top Energy A Series

Stone Coated Roof Tile -  Solution

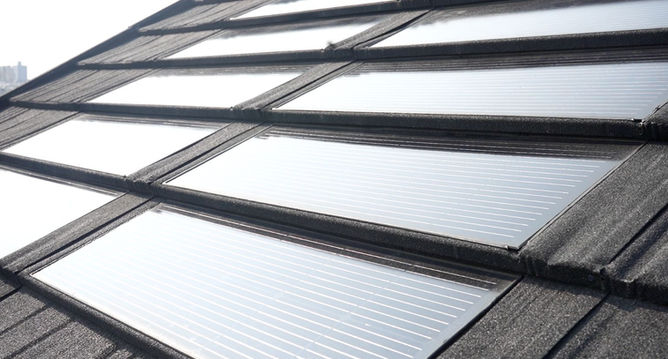

"Top Energy" A Series is a building-integrated photovoltaic tile that combines the functions of a tile and a power generator. The tile is made of high-quality aluminum-zinc-coated steel plate, which has been sandblasted and treated for corrosion resistance and weather resistance, enabling it to last for more than 50 years. The photovoltaic part uses high-quality monocrystalline silicon solar cells and high-transparency glass, with a photoelectric conversion efficiency of over 21%. The base and photovoltaic components are professionally compounded to form a building-integrated photovoltaic tile that covers an area of approximately 0.5 square meters per tile and generates about 0.3 kWh of electricity per day with a power of 75 watts.

"Top Energy" A Series products use a mature process that is compatible with colored stone metal tiles and can be installed facing the sun, with flexibility in replacing ordinary tiles. It is suitable for villas, office buildings, holiday homes, residences, and other buildings with a slope greater than 15 degrees. The tile is lightweight, easy to install, waterproof, wind-resistant, safe, efficient, elegant, and cost-effective.


Output power: 75W

Tile size: 1320mm X 420mm

Coverage size: 1250mm X 380mm

Photovoltaic material: Monocrystalline silicon
